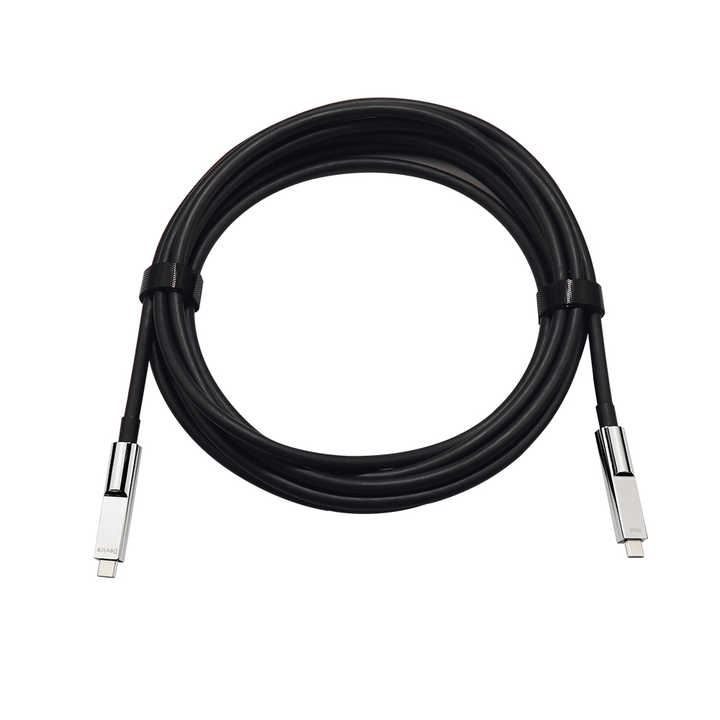

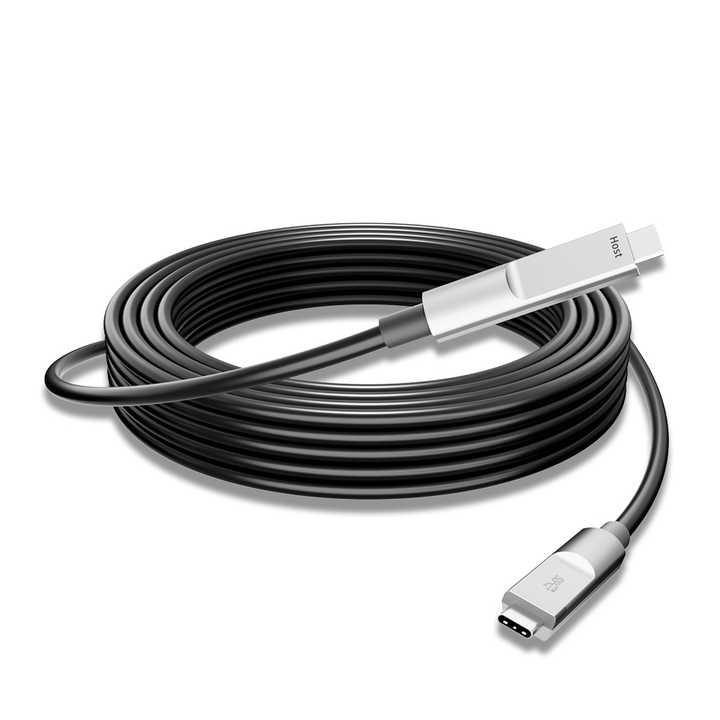

Cable Wire Specs: 6 Core OM3 Fiber + 9 Core Copper Wire + Nylon Tensile Filler with Black TPE Jacket
Cable Jacket: Flame Retardant (UL VW1), Black TPE Jacket
Outer Diameter: 6.5 mm
Driver Chip: Made in Germany
VESEL: Made in USA
Power Consumption: 250 mW
Extra Power Supply: No extra power needed under meters

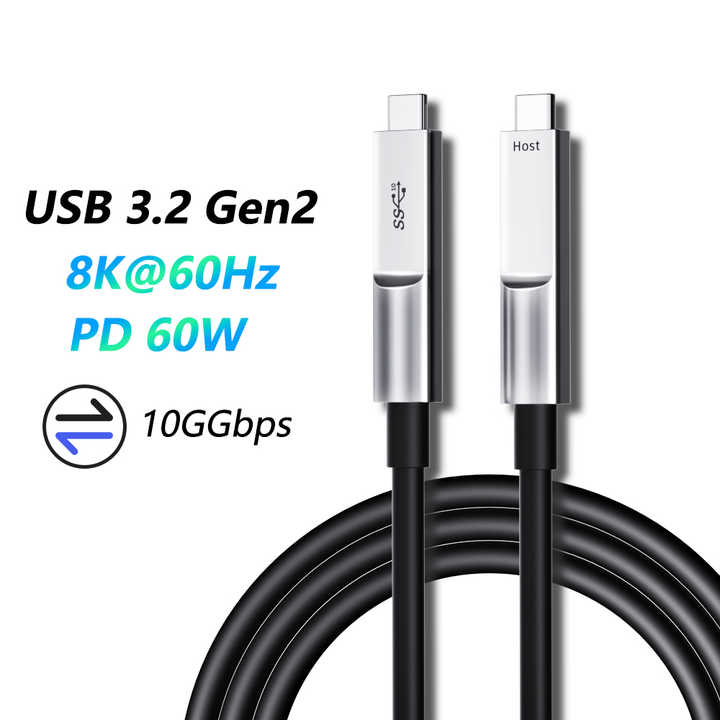

USB Version: USB 3.2, 3.1, 3.0, 2.0, 1.1
Data Transfer Speed: 10Gbps
Fast Charging: PD, QC 60W, 20V/3A
Video Synchronization: 4K@60Hz up to 8K@60Hz and 4K@120Hz
Length: Maximum length up to 15 meters, customization length support available
Features and Advantages: An innovative one-cable solution for full functionality, supporting audio and video synchronization at 4K@60Hz up to 8K@60Hz with high-speed data transfer. It also provides PD charging supply from devices to screens such as a monitor, laptop, or mobile phone simultaneously.
Compatibility Devices: Compatible with computers, laptops, workstations, flash disks, HDD, PTZ/CCTV, web cameras, keyboards, mice, touchscreens, tablets for iPad, Mac, and ultra-speed laptops with Type-C ports.
Application Field: Ideal for education/conference systems, USB device extension, security engineering, and hotel monitor systems.

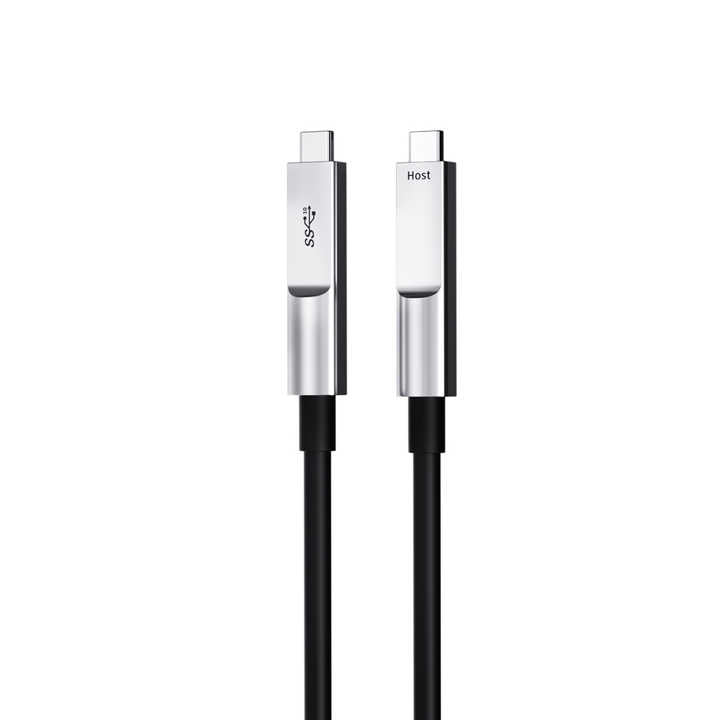

User Tips: The fiber cable for video and audio sync is uni-directional. Ensure the HOST connects the laptop as the source, and the device connects to the screen monitor as the display.
